MDS

Smart bus information display

  • High brightness of up to 2,500 nits
  • PCAP Touch screen 10 touches
  • Rounded edges for improved safety and aesthetics
  • USB charging system for mobile devices



DIMENSIONS


For a better public transport experience

MDS displays provide passenger information, show timetables and animations in real time. Integration is quick and easy because it uses standard protocols. Designed to operate 24 hours a day without interruption, MDS monitors are equipped with PCAP touch screen and carefully customized to meet the customer’s needs, with a long list of possible options, such as, USB charging sockets, camera, shock sensor, door sensor, proximity sensor, text-to-speech or audio system.

Ready for installations in direct sunlight

MDS offers an IP55 degree of protection, with a vortex ventilation system, designed to operate between -30°C and +40°C in direct sunlight, or +50°C with north-facing display, even in the presence of iron dust, high humidity and salt

Outdoor interactivity thanks to the touch screen with PCAP technology

MDS displays are often used to offer information support to the public transport service (bus waiting time, mapping of the transport system, etc.) of public interest (cultural sites, institutional events or initiatives for the community). Designed to host the map of the transport network with navigation on a multipoint touchscreen that allows the updating and consultation of data in real time. It has a standard USB port and a USB-C port on the bottom side in order to facilitate accessibility for everyone (people with disabilities, children, etc.) .

All-weather operation

MDS is an outdoor monitor created to meet all the needs of full-outdoor use in adverse weather conditions. High brightness up to 2,500 nits, the LCD panel ensures visibility even under direct sunlight and the latest and most sophisticated technology guarantees maximum performance even in high temperature conditions up to +40° (+50°C in shaded conditions).

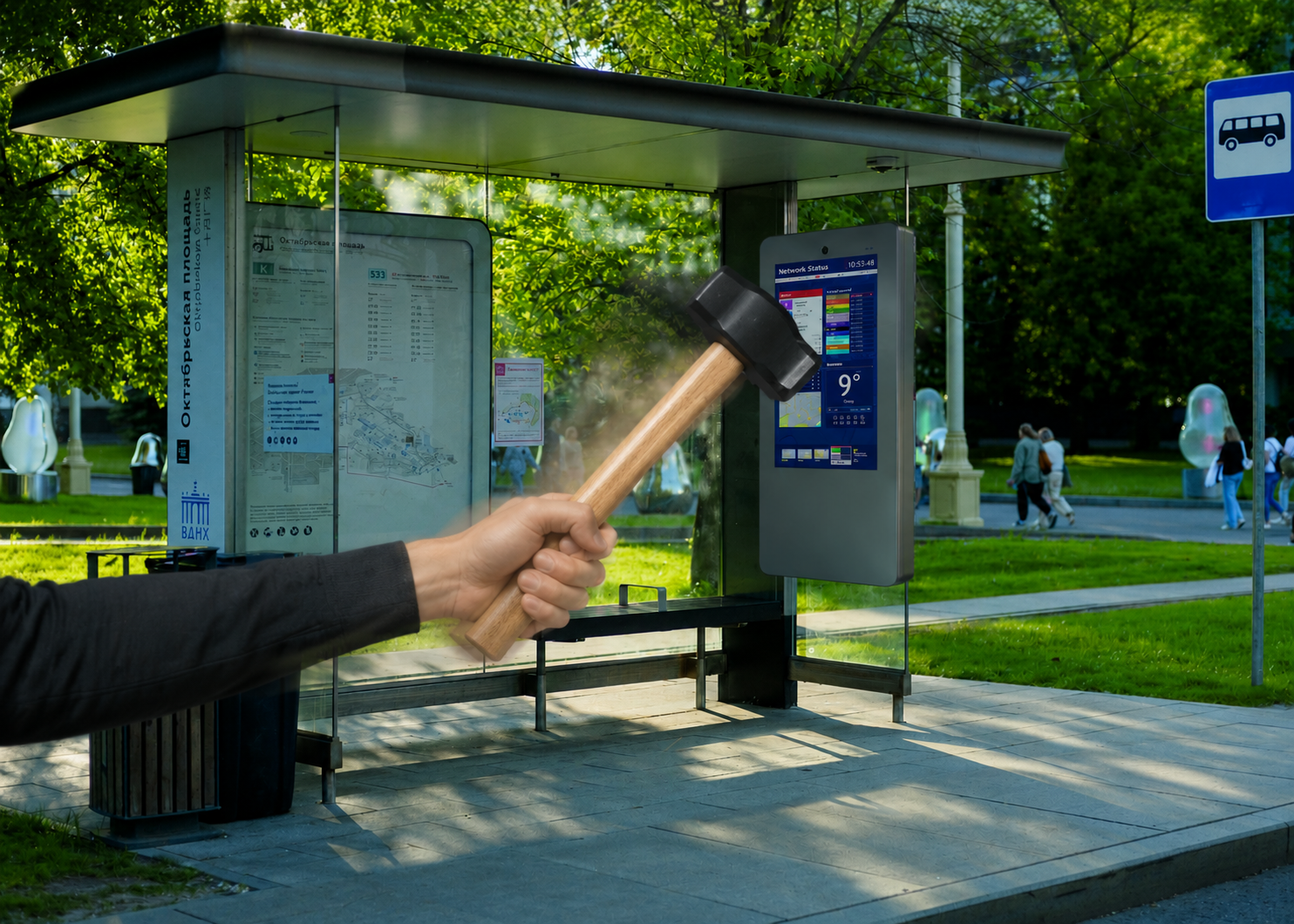

Vandal-proof glass

Designed to protect the LCD display from impact and vandalism in outdoor environments. The front glass has a thickness of 3+3 mm and a special treatment to withstand impacts of 20 joules, generated by a weight of 5 kg with a fall of 40 cm. IK10 degree of protection

Excellent visibility with anti-glare glass

Thanks to the anti-reflective treatment, the glass is able to minimize the reflection of light that compromises the sharpness and visibility of the contents. It is standard on our outdoor products and is very useful in public information installations

Sensor with automatic brightness adjustment

It allows you to adjust the brightness of the LCD display according to the ambient light conditions, optimizing day and night visibility to ensure the best visual effect. It contributes substantially to increasing the life of the display, reducing energy consumption and the related running costs

2 USB charging sockets for mobile devices

With the aim of improving the passenger experience, in terms of connectivity and comfort, the MDS monitor integrates two USB charging sockets allowing the charging of mobile equipment (smartphones, tablets, digital cameras, etc.). The user using the USB charging point does not interfere in any way with the visibility of the information totem.

Passenger flow control camera (people counter)

To explore next-generation mobile communication in areas such as security, tourism, and the enhancement of artistic and cultural heritage, people counting solutions can be used that can count people by detecting passages through virtual gates. Then, thanks to an advanced video surveillance system, the information can be transmitted to a control room that can assess possible crowding and, through sophisticated algorithms, decide to deploy actions in the area of public order and security protection.

Integrations and customizations

MDS displays are designed to be able to integrate compact PCs and other network devices. In custom projects we are often engaged in integrating special devices that require advanced technical skills with very short design and delivery times

Octoplus – Cloud Diagnostics System

Our DVP diagnostic board can monitor and manage diagnostic data from analog or digital electronic devices and sensors, receive data from optical detector that can report whether the display is stuck on a still image, humidity sensor, HVAC functions, temperature, ventilation, outdoor light sensors, and many other customized functions.

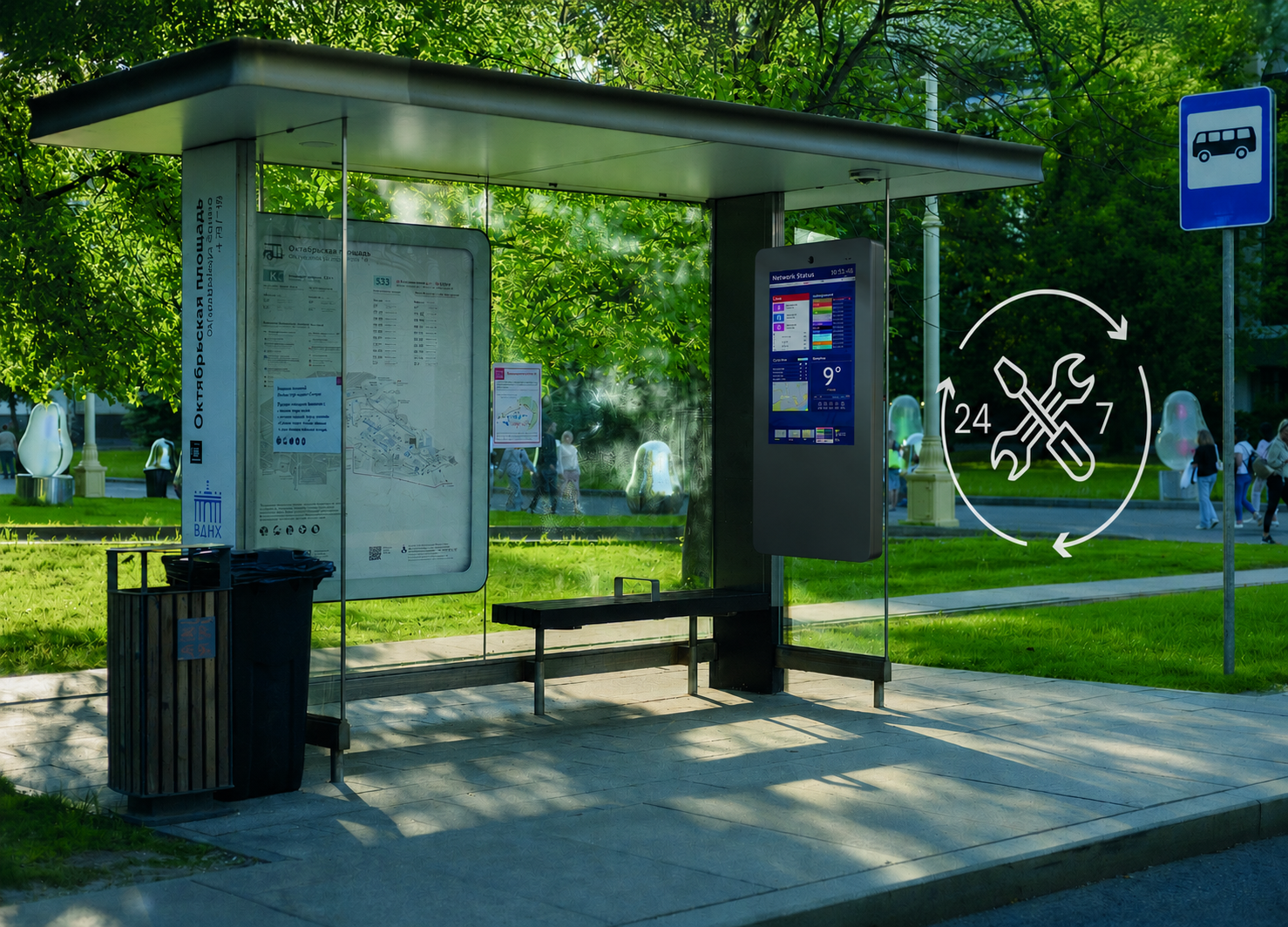

24/7/365 Non-Stop operation

We provide a wide range of professional products with industrial manufacturing processes for 24/7/365 operation. ideal for airports, train stations, Digital OOH advertising networks and all environments where it is essential to display and ensure information clearly and reliably, without interruptions.
EKS non stop operation

Customization capabilities

Our products and services are managed according to the ISO 9001 quality regime. Our goal is to follow and advise the customer in the creation of customized products, both for interiors and exteriors, taking care of all phases and elements of mechanical and electronic design, including any certifications.

Available Options

To make your designs unique, we provide a wide range of options that can help you customize your product to meet your specific needs

Available

Not available

On project

Combining multiple options may require you to make a product with a different design

touch screen.png
proximity sensor.png
shock sensor.png
umts 4g.png
car charger
custom color.png
client logo.png
media player.png
advandec diagnostic.png
metal top cover.png
billboard back side.png
wall mounts.png
thermal printer.png
qrcode reader
aed
bike pump
mobile charger
air analisys
ebike charger
pos
nfc
rfdi
door sensor
