EKO

Outdoor digital totem

Total protection from water and dust
24/7/365 use
Robust and reliable
Advanced diagnostic system

DIMENSIONI

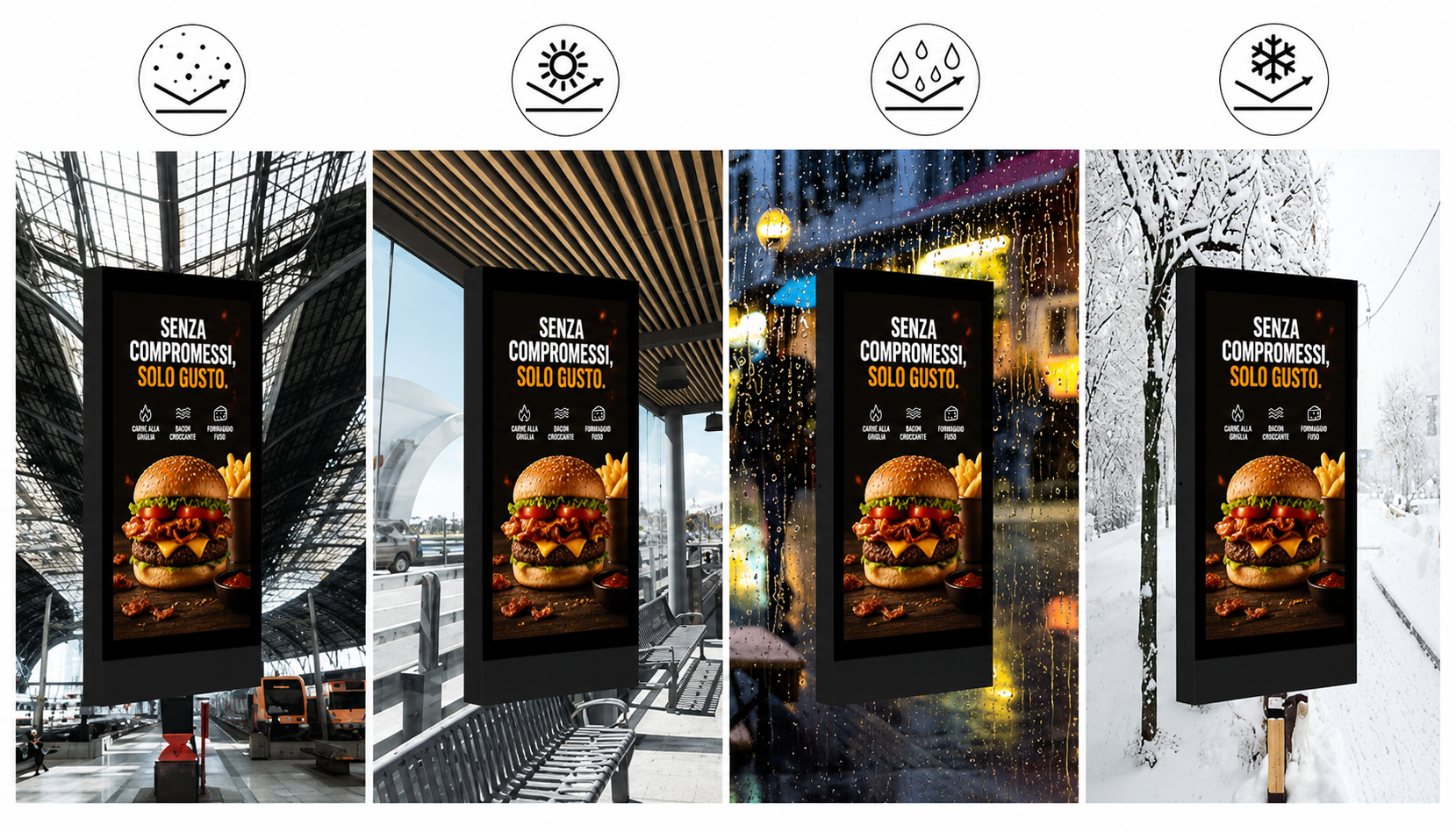

Outdoor operation, better if not in direct sunlight

EKO is a totem that has an IP55 degree of protection, but not very suitable for exposure to direct sunlight. It is located inside railway stations in the presence of ferrous dust, in subway stations, in factories with a strong presence of dust, humidity and temperatures down to -30°C. The brightness of 700 nits ensures excellent visibility in outdoor environments as long as they are equipped with special canopies that protect it from direct sun.

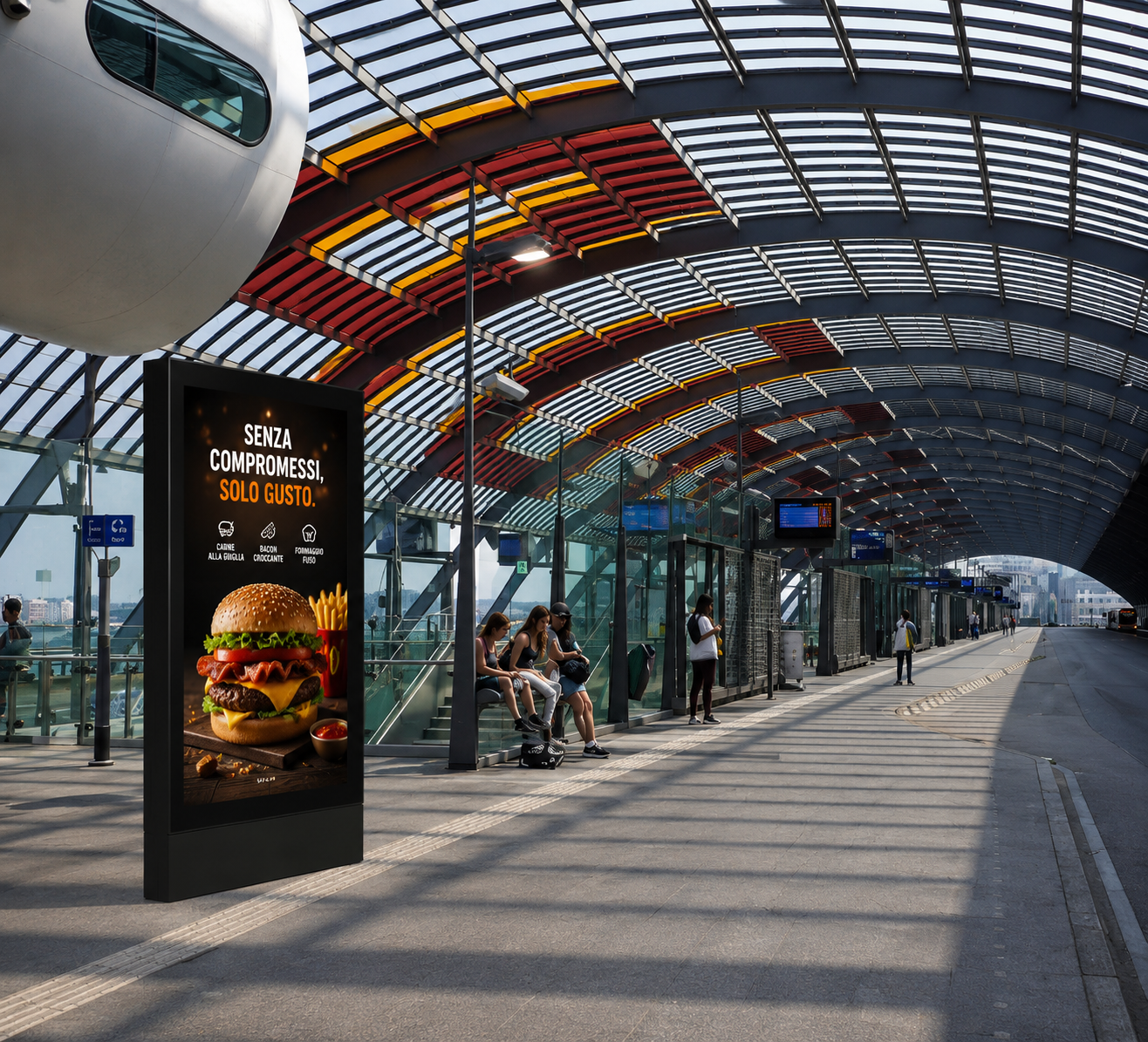

Perfect for semi-outdoor environments

EKO is a rugged industrial totem, totally made of corrosion-resistant aluminum for applications in unmanned environments. Reliable in heavy-duty 24/7 conditions and at operating temperatures -30° +45°. The protection against dust and intense water jets, the laminated and tempered 4+3 front safety glass and the aluminum shell, guarantee optimal protection against atmospheric agents and vandalism. EKO totems are therefore excellent means of communication for railway stations, subways, bus shelters, companies, ports and customs.

Bright Colors for Effective Communication

Subway stations, airports, and railways are places where travelers continually need up-to-date information, delivered with clear visibility. Thanks to the use of a 4K screen with LED backlight and a brightness of 700 nits, EKO totems offer high visibility performance regardless of the viewer’s angle, even in outdoor environments.

Resistant to iron dust

EKOs are ultra-durable professional totems that provide real-time public service information in airports, bus stations or railways. The body is made entirely of extruded aluminum, immune to electromagnetic disturbances and extremely resistant to corrosion, water and ferrous dust, according to the IP55 protection standard

Front protection with vandal-resistant glass

Designed to protect the LCD display from shocks and vandalism in outdoor environments. The front glass has a thickness of 4+3 mm and a special treatment to withstand impacts of 20 joules, generated by a weight of 5 kg with a drop of 40 cm. Degree of protection IK10

Excellent visibility with anti-glare glass

Thanks to the anti-reflective coating, the glass is able to minimize the reflection of light that compromises the sharpness and visibility of the contents. It is standard on our outdoor products and is very useful in public information installations

Outdoor interactivity thanks to PCAP touch screens

PCAP touch screens have a number of advantages that make them an ideal choice for a wide range of applications. The main ones are the resistance to vandalism, as they are positioned on the back of the glass, the high sensitivity to touch controls, the optical clarity, the multi-touch capability and the use with latex gloves.

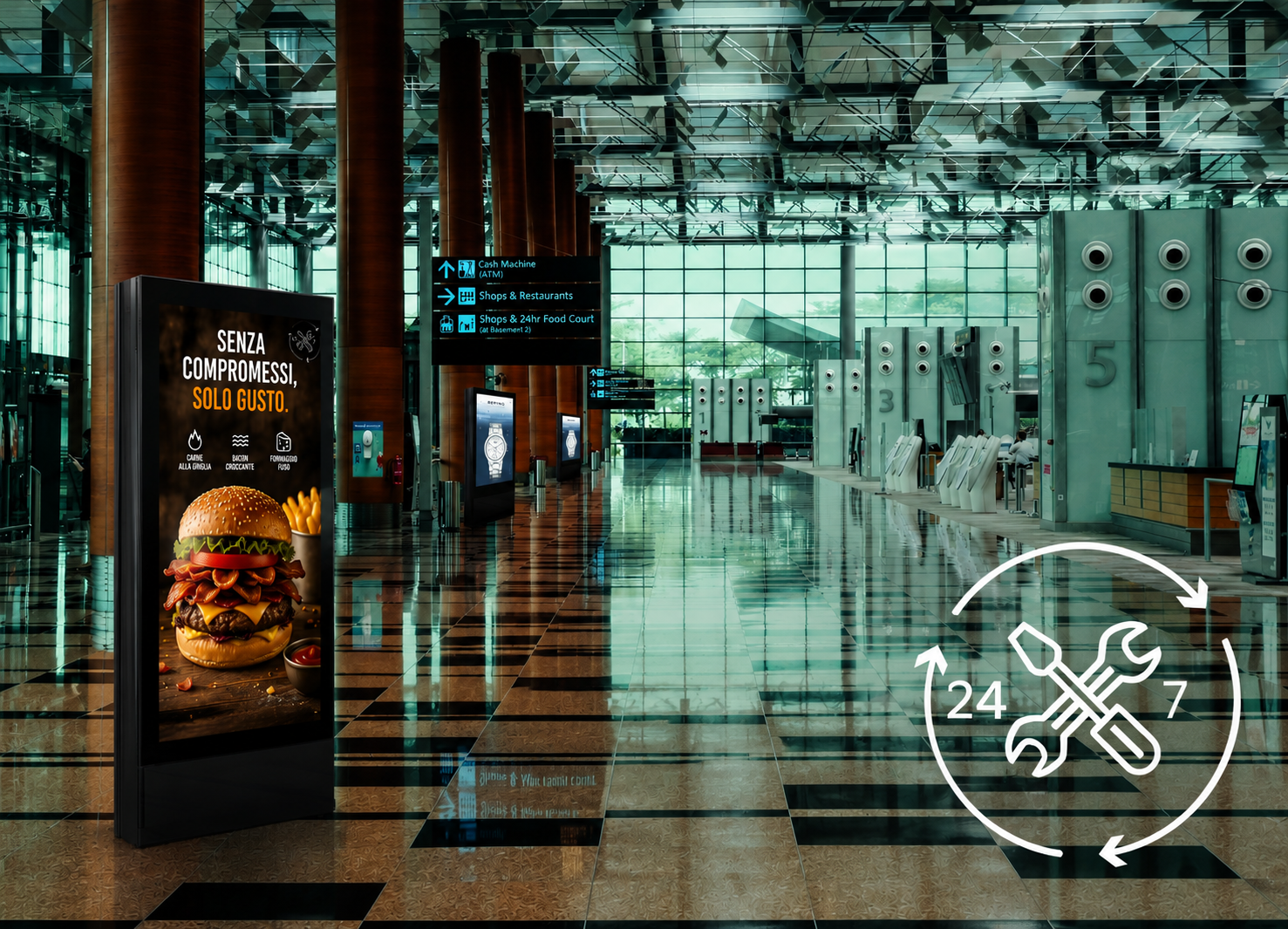

24/7/365 non-stop operation

We provide a wide range of professional products with industrial manufacturing processes for 24/7/365 operation. ideal for airports, train stations, Digital OOH advertising networks, and all environments where it is critical to display and secure information clearly and reliably, without interruption.

Sleek and elegant design

We have over 50 years of experience in the use of industrial technologies and processes for metalworking and finishing. Mechanical structures made without visible screws and with aluminum extrusions to ensure lightness, resistance, anti-corrosion and above all a 100% recyclable material, therefore sustainable and environmentally friendly.

Integrations & Customizations

EKO WMO totems are designed to be able to integrate compact PCs and other network devices. In custom projects we are often able to integrate special devices that require advanced technical skills with very short design and delivery times

Front opening with easy access

All our products are made with front access to be able to carry out cleaning and maintenance activities quickly and easily. For outdoor products we use a double front door that allows the display to be quickly replaced and cleaned.

Octoplus – Cloud-based diagnostic system

Our DVP diagnostic board can monitor and manage diagnostic data from electronic devices and analog or digital sensors, receive data from optical detector that can report if the display is stuck on a still image, humidity sensor, HVAC functions, temperature, ventilation, outdoor light sensors, and many other customized functions.

Customization Capabilities

Our products and services are managed according to the ISO 9001 quality regime. Our goal is to follow and advise the customer in the creation of customized products, both for interiors and exteriors, taking care of all the phases and elements of mechanical and electronic design, including any certifications.

Available Options

To make your designs unique, we provide a wide range of options that can help you customize your product to meet your specific needs

Available

Not Available

On Project

Combining multiple options may require you to make a product with a different design
